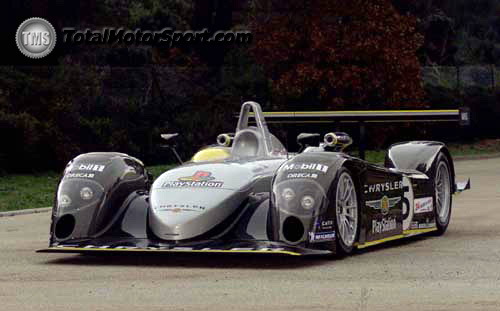

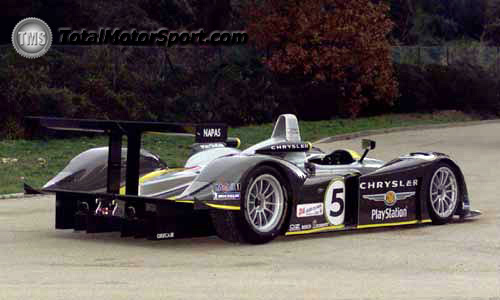

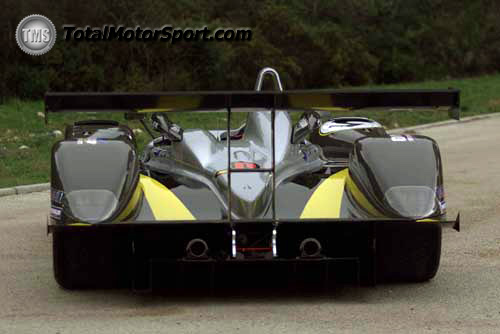

The Chrysler LMP Le Mans car was unveiled in today, January 16, along with these photographs, taken in Belgium.



Carbon composite monocoque
Length 4650 mm
Width 1998 mm
Height 1060 mm
Front track 1630 mm
Rear track 1590 mm
Weight 900 kg
Gearbox X-trac 6 speed sequential



Tilton carbon clutch
Independent double wishbone suspensions front and rear, ventilated uprights
Push-rod operated Dynamic Suspensions shock absorbers
OZ centre-locked, one-piece forged magnesium wheels
Michelin tyres
Brembo six piston racing calipers front and rear
Carbone Industrie 380mm (15in. front) carbon discs with carbon pads
355mm (14in. rear) carbon discs with carbon pads
6.0 litres, 90 degree Mopar V8
170 kg
Aluminium alloy block, Mopar aluminium heads
104.1mm x 83.8mm bore and stroke
Bosch engine management
